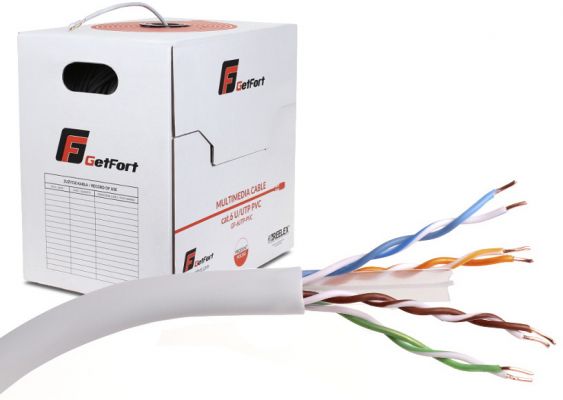

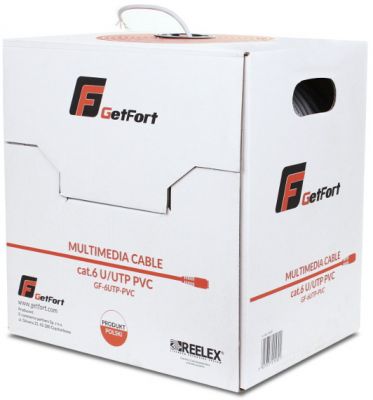

GETFORT CAT.6 U/UTP PVC
Features
| Model | GF-6UTP-PVC |
| Application | Inside |
| Categories | 6 |
| Construction | U/UTP |
| Shell | PVC |
| Type veins | CU |
| Wire diameter | 24AWG(0,54)mm |
| Frequency band | 350MHz |
| Outer diameter | 6,1mm |
| Weight disc | 41kg |
Description
GetFort CAT 6 premium cable is designed for the construction of professional telecommunication or telecommunication systems using a frequency band up to 350MHz. Cables are suitable for data, audio and video broadcasts with a binary bandwidth above 1Gb / s. The wire is used to build so-called. Indoor structured cabling systems in accordance with PN-EN 50173-1, EN 50288-3-1, ISO / IEC 11801 2 ed. , IEC 61156-5, ANSI / TIA 568-C.2. This cable is also ideal for building CCTV systems - CCTV, thanks to its excellent video transmission characteristics.
| Temperature range | During operation -30°C do +70°C When laying -10°C do +50°C |
| Minimum bending radius | 4xØd - outer diameter of the cable |
| Resistance of wires / steam temperature. 20°C (max) | 165 Ω/km |
| Insulation resistance (min) | 5 GΩxkm |
| Resistance unbalance in hand | ≤ 2% |
| Effective capacitance of any pair of the 1 kHz | 50 ± 5 nF/km |
| The asymmetry in the capacity of the transmission path with respect to ground at 1kHz (max) | 1600 pF/km |
| Operating voltage | 150V |
| Voltage test | AC 50 Hz - 700 V AC DC 1000 V DC |
| Impedance | 100 ± 5 Ω |
| Ppeed of propagation NVP | 69 % |

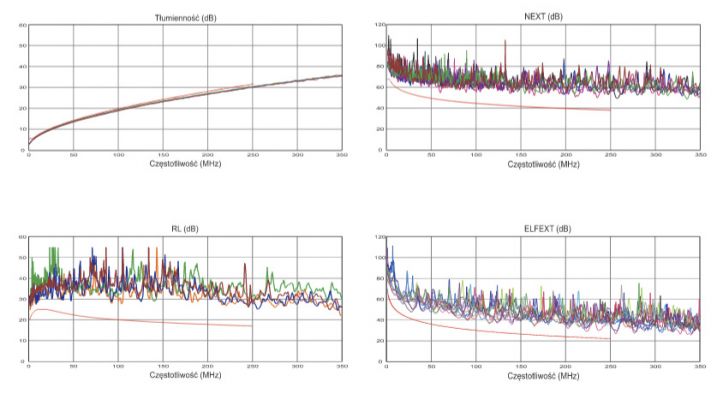

| Return loss in the frequency pairs dB (min) | f = 4÷10 MHz - 20+5lg(f) f = 10÷20 MHz - 25 f = 20÷350 MHz - 25-7lg(f/20) |

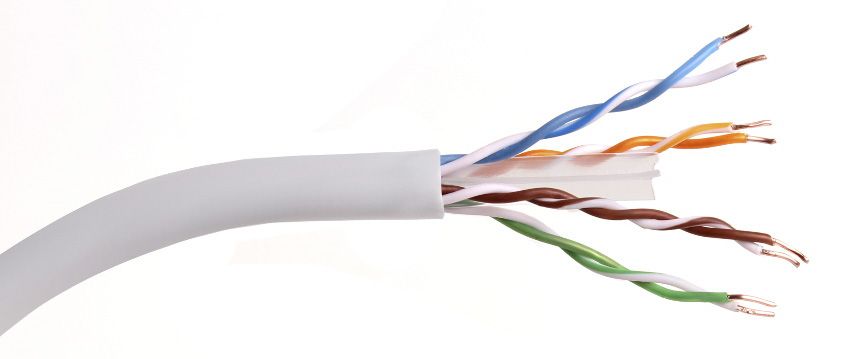

Constructions | |
| Veins | Singlewire round of soft electrolytic copper |
| Insulation | A special blend of polyolefin |
| Color core insulation | Green, blue, brown, orange - twisted pair with white vein with corresponding colored stripe lengthwise |
| Center | Four pairs of strands twisted into a center on a centrally arranged separating element |
| Outer shell | Polyvinyl chloride PVC tire |
| Sheath color | Gray RAL 7035 for PVC coating |
