GETFORT KAT.5E U/UTP UV GEL
Features
| Model | GF-5UTP-UVG |
| Application | Outdoor |
| Categories | 5E |
| Construction | U/UTP |
| Shell | UV |
| Type veins | CU |
| Wire diameter | 24AWG 0,5mm |
| Frequency band | 200MHz |
| Outer diameter | 6,2mm |
| Roll weight | 40kg |
Description

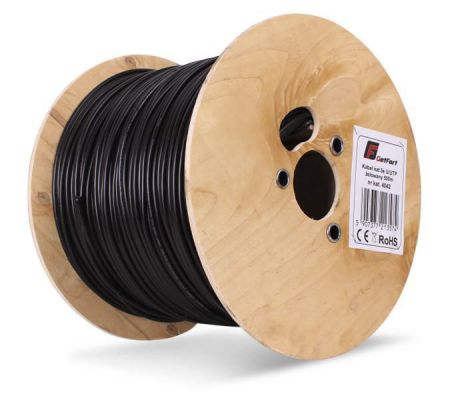

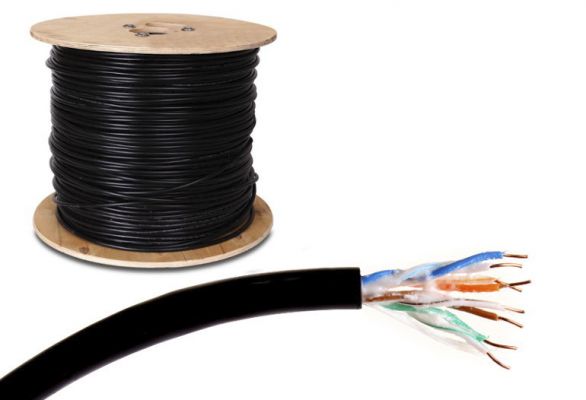

The data communications cable (twisted-pair) category 5e GetFort premium are designed to build professional data communications systems or telecommunications that use a frequency range up to 200MHz. Cables suitable for the transmission of data, sound and video television having a capacity of binary data to 1Gb / s. The cable used for the construction of the so-called. structured cabling systems for outdoor use according to standard EN 50173-1, EN 50288-3-1, ISO / IEC 11801 2 ed. , IEC 61156-5, ANSI / TIA 568-C.2. The cables are filled with hydrophobic gel protecting against longitudinal water penetration. Having an external coating resistant to UV rays, and therefore suitable for laying outdoors, in cable ducts or directly in the ground.
The cable also ideally suited for the construction of CCTV systems - CCTV on its excellent transmission characteristics of video cameras.
Specification
| Cable design |
| |
| The thickness of the veins | 0,500mm | |
| Execution of veins | Copper wire [Cu] | |
| Core insulation | HDPE 1,02mm | |
| The thickness of the coating | 0,550mm | |
| The outer diameter of the shell | 5,50mm LDPE | |
| The impedance in the range of 1-100MHz | 100 Ω | |
| Max. resistance in the range of 1-100MHz | 9,5 (Ω/100m) | |
| Fulfillment | Gel | |
| Shew Delay (ns / 100m) | ≤45 | |
| Colour | Black | |
| The maximum amount of the package | 500m |
Budowa
| Veins | Singlewire round of soft electrolytic copper |
| Insulation | A special blend of polyolefin |
| Color core insulation | Green, blue, brown, orange - twisted pair with white vein with corresponding colored stripe lengthwise |
| Center | Four pairs of twisted wires in the center, sealed gel hydrophobic |
| Outer shell | Polyethylene PE coating |
| Sheath color | Black |

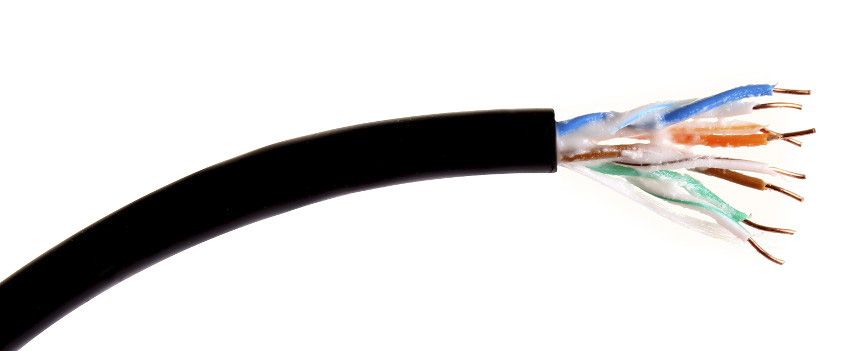

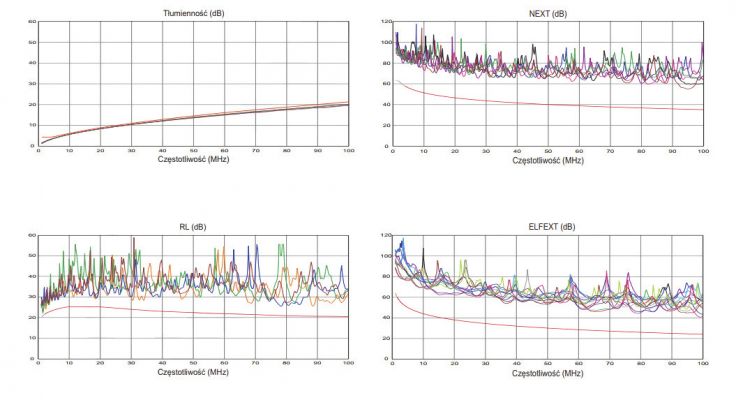

Parametry transmisyjne
| Frequency Mhz | 1 | 4 | 10 | 16 | 20 | 30 | 45 | 60 | 80 | 100 | 120 | 130 | 155 | 175 | 200 |
| Attenuation ≤ dB/100m | 2,1 | 4,0 | 6,3 | 8,0 | 9,0 | 11,2 | 13,9 | 16,2 | 18,9 | 21,3 | 23,6 | 24,7 | 27,2 | 29,2 | 31,5 |
| NEXT ≥ dB/100m | 65,3 | 56,3 | 50,3 | 47,2 | 45,8 | 43,1 | 40,5 | 38,6 | 36,7 | 35,3 | 34,1 | 33,6 | 32,4 | 31,6 | 30,8 |
| PS NEXT ≥ dB/100m | 62,3 | 53,3 | 47,3 | 44,2 | 42,8 | 40,1 | 37,5 | 35,6 | 33,8 | 32,3 | 31,1 | 30,6 | 29,5 | 28,6 | 27,8 |
| ELFEXT ≥ dB/100m | 63,8 | 51,8 | 43,8 | 39,7 | 37,8 | 34,3 | 30,7 | 28,2 | 25,7 | 23,8 | 22,2 | 21,5 | 20,0 | 19,0 | 17,8 |
| PS ELFEXT ≥ dB/100m | 60,8 | 48,8 | 40,8 | 36,7 | 34,8 | 31,3 | 27,7 | 25,2 | 22,7 | 20,8 | 19,2 | 18,5 | 17,0 | 16,0 | 14,8 |
| RL ≥ dB | 20,0 | 23,0 | 25,0 | 25,0 | 25,0 | 23,8 | 22,5 | 21,7 | 20,8 | 20,1 | 19,5 | 19,3 | 18,8 | 18,4 | 18,0 |
