Switch PoE 4+2 Hi-POE 65W + Watchdog


Features

Ports6x 100Mbps RJ45
PoE Ports4x PoE 802.3 af/at
PoE Budget60W
PoE Support30W each port, 60W port1

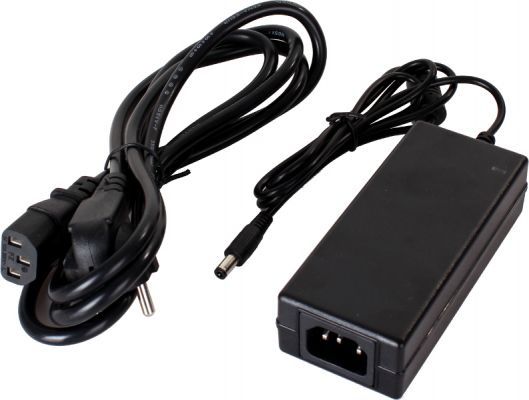

Power Supply52V/65W
Long range PoEup to 250m
VLAN port isolation supportYes

Description

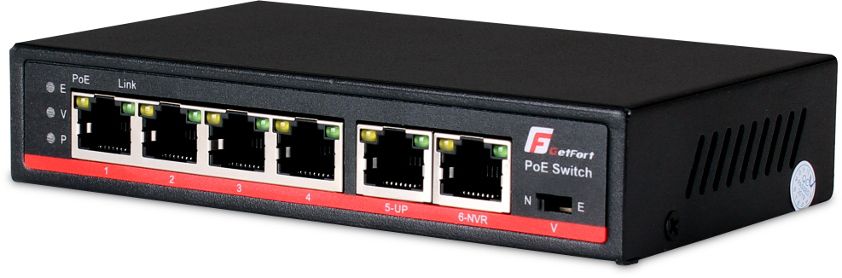

The GetFort GF-106DWH-4P-65 switch allows up to 250 m range of data transmission and power supply for monitoring systems. The high PoE budget makes the device ideally suited to small and medium-sized company monitoring systems.

WATCHDOG

Automatic device test using the PING function. This feature is based on sending ICMP packets to get a response from the device being tested. In its absence, a reset occurs at the device output.

Easy to use

The automatic functions of this switch make installation and operation easy and hassle-free.

No configuration required. Auto MDI / MDIX eliminates the need for patching. Automatic negotiation on each port detects the network device's connection speed (10.100 Mb / s) and intelligently adapts to compatibility and optimal performance.

Transmission range up to 250m

The GetFort GF-106DWH-4P-65 switch has been designed especially for IP monitoring. It supports Long range mode which allows connection over a distance of 250m. The Getfort Switch GF-106DWH-4P-65 is the perfect solution for deploying IP cameras over a large area.

Stable and reliable

The GetFort Switch GF-106DWH-4P-65 is a 6-port unmanaged 10 / 100Mbps switch that requires no configuration and provides 4 PoE ports. All 6 ports support automatic MDI / MDIX, which allows the use of any type of cable. Equipped with full duplex mode, the switch can process data at speeds up to 200 Mb / s, making it the perfect choice for expanding a high-performance wired network.

High PoE power budget and energy efficiency

The high PoE budget makes the device ideally suited to small and medium-sized company monitoring systems. PoE + technology based on the IEEE 802.3at protocol allows users to power peripherals with up to 30W of power, which allows image transmission from Full HD cameras in real time with full fluidity.

PoE transmission via Cat5e / Cat6 cable allows to supply energy to peripheral devices with high data transfer rate (up to 100 Mb / s). Thanks to the innovative energy-saving technology, the switch saves up to 68% of energy consumption, making it an environmentally friendly solution.

VLAN mode of operation

In VLAN mode, the switch enables logical separation of subnets by isolating ports. A hardware switch in V mode to isolate ports to prevent broadcast storms and protect against DHCP spoofing attacks.

Overload prevention

The switch has a priority function that protects the system in times of overload. The power consumption of devices powered via PoE is up to 60W. Devices connected to ports with higher priority are powered first.
