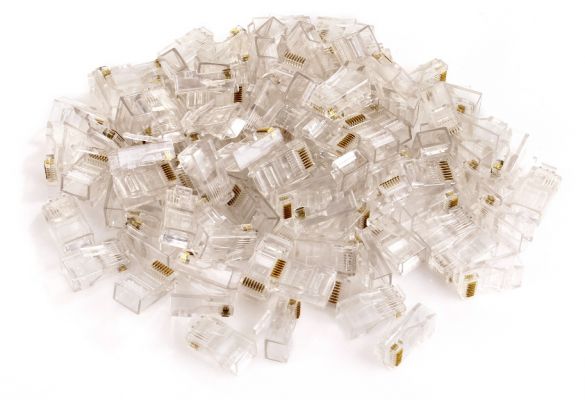

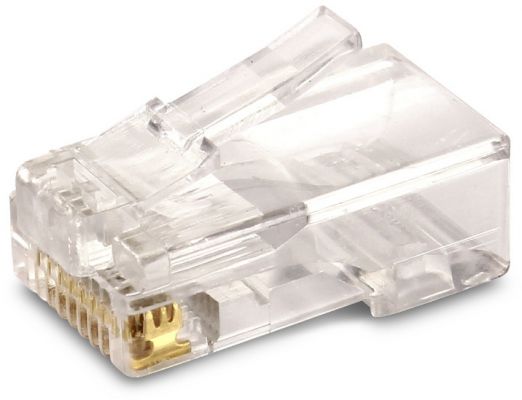

RJ45 NETWORK PLUG CAT.6 UTP 8P8C
Features
| Model | GF-RJ45-6UTP |
| Categories | 6 |
| Construction | UTP |
Description
Modular plug RJ-45 (8p8c) designed for terminating unshielded twisted pair cables in structured cabling installations. The plug is intended for category 6 wire, round wire type. The individual contacts have sharp, slightly spaced teeth, penetrating directly into the insulation of individual veins, providing a secure and lasting connection.
| Type | Cat.6 UTP |
| Housing material | polycarbonate |
| Contact material | phosphor bronze, gold plating |
| Max current | 1,5A |
| Max voltage | 150V |
| Contact resistance | 20Ohm |
