RJ45 NETWORK PLUG CAT.5e UTP 8P8C
Features
| Model | GF-RJ45-5UTP |
| Categories | 5E |
| Construction | UTP |
Description

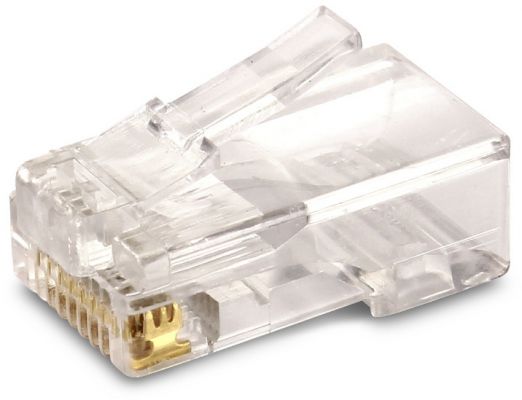

Modular plug RJ-45 (8p8c) designed for terminating unshielded twisted pair cables in structured cabling installations. The plug is intended for category 5e wire, round wire type. The individual contacts have sharp, slightly spaced teeth, penetrating directly into the insulation of individual veins, providing a secure and lasting connection.
| Type | Cat.5e UTP |
| Housing material | polycarbonate |
| Contact material | phosphor bronze, gold plating |
| Max current | 1,5A |
| Max voltage | 150V |
| Contact resistance | 20Ohm |
